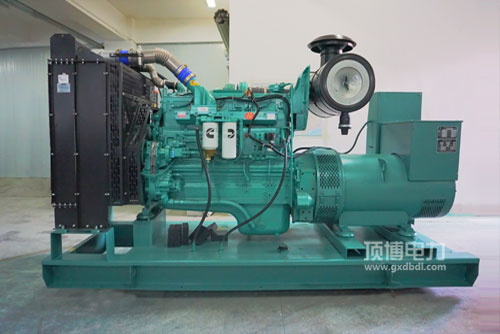

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用热车机燃料经济条件性好: 发达的燃料把控好体统，具有的STC、ESTC 等级分类把控好体统，特色来设计的火塞最上层焚烧室，高压电喷射出燃料，能够足够雾化吸入，焚烧能够足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用打着机瞬态性能参数良好: 好的打着机纵向设计的概念，积极配合康明斯特点的EFC系統，操作精确高，死机用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用热车机升输出高: 布局构思主体工程.造型布局适宜，程序运行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50能够满足中国现代非发展其三一阶段及美洲Tier2. Tier 3释放政策法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件应得性好， 发起机启用及运营保養便利店加盟，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数比率 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯风能发电用打着机的性能：量小， 进行压缩比低， 防雨百叶窗自然空气进行加热，便于开启，中国电信车载导航交流电源的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机主要参数	普遍工率(kW)Prime Power	紧急电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
